New Mezzanine Floor - M50

In stock
SKU
New Mezzanine floor - M50
£5,325.00

Product Specifications

For storage use:

  • 5.000m (L) x 10.000m (W)
  • 3.000m Finished Floor Height
  • 4.8kN/m2 (480kg per sqm2) UDL - Storage Loading
  • Fast Delivery

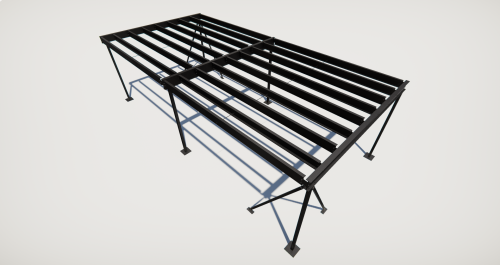

main product photo

Key Information:

  • Overall Dimensions: 5.000m x 10.000m
  • Finish Floor Height: 3.000m
  • Underside Clearance Height: 2.708m
  • Total Usable Area: 50.00m2
  • 4.8kN/m2 (480kg per sqm2) UDL - Storage Loading
  • Decking Included: P6/ U7 38mm Particle Board T&G 2 C grade - Non moisture resistant / natural finish
  • Bracings & Fixings Included



  • Collection is available from our Leicester site
  • Delivery is available - please continue checkout for delivery quote request







Steelwork Layout:

  • 1 x Bay in the 5.000m direction (beams)
  • 2 x Bay in the 10.000m direction (joists)



Finishes:

  • Beams & Columns - RAL 7024 (graphite grey)
  • Joists - Galvanised
  • Decking - Natural



Fully certified UKCA / CE Marked steelwork, CAD drawings & Full calculations package included as standard
